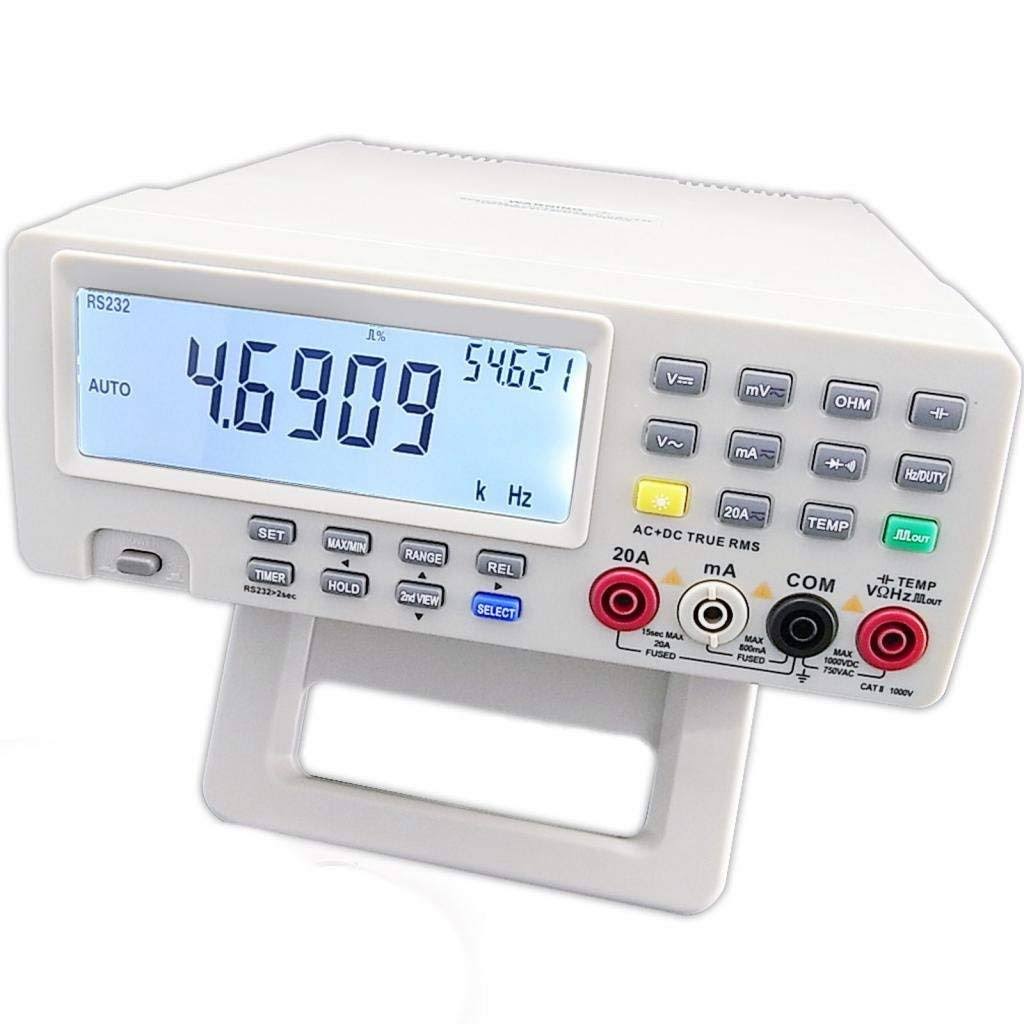

Digital Bench Top Multimeter with PC Analog Bar Meter M584
Sale price
$25.99
Regular price $95.72
Skip to product information
Main Display: 80000 - Secondary Display: 80000 - Analog Bar Graph: 23 segments, update 40 time/sec More than 50 measuring functions including DC/AC Voltage, DC/AC Currents,Resistance (Ω), Capacitanc Single Analyzed: measure synchronous: (AC+DC), (AC+Hz), (DC+d - Bm), (d - Bm+Hz), (Hz+Duty) ; Display sync Storage Temperature: -10 ~ 40 °C; Storage Humidity: below 80% RH 16 Frequency points, 1% to 99% duty selectable square wave output Features * 80000 main and secondary display * Analog Bar Graph: 23 segments,update 40 time/sec * Single Analyzed: measure synchronous: (AC+DC), (AC+Hz), (DC+d - Bm), (d - Bm+Hz), (Hz+Duty) ; Display synchronous: (°C+°F) * Freq: 0.5Hz -1000.000000MHz * Basic DC Accuracy 0.05% * m - V Impedance >1000M? * 16 Freq pts, 1-99% duty selectable square wave output * Analyzing component of current or voltage signal * Resistance 0.1? - 80M?,10-8000M? * Capacitance 10nF-100μF * Temp -50 - 1372°C, -58 - 2502°F * d - Bm 20 types of reference impedance * Auto data/peak hold w/ timer * Rel % measure * 36hrs dynamic record: MAX/MIN/AVG/MAX-MIN * Communication: isolated optical RS232 * Measure speed 3/sec * IEC 61010 CAT II 1000V ; CAT III 600V compliance * 0.1-99.9% pulse duty cycle measuring * Set upper and lower limit area measuring * Timing measuring function and can connect to PC * Use on production lines, laboratories, factories, radio-technology, R&D, maintenance, repairing work Specifications Max voltage between any terminal and earth ground: 1000V RMS Continuity Beeper: 3k - Hz Approx Operating and Storage Temp: 0-50°C, -20 - 60°C Operating and Storage Altitude: under 2000m, under 10,000m RH: ≤75% at 0-40°C Electromagnetic Compatibility: in a RF field or 1 V/m on all ranges and function except Capacitance Total Accuracy: specified +5% of range Capacitance not specified in RF fields performance above 1 V/m is not specified AC Power: 110-220V Set Includes 1 x Digital Multimeter 1 x Test Leads 1 x Type K Thermocouple 1 x RS-232 CD 1 x 9-pin Cable Adapter 1 x AC Power Cord English User's Manual
Digital Bench Top Multimeter with PC Analog Bar Meter M584
Sale price
$25.99
Regular price $95.72
Shipping calculated at checkout.
