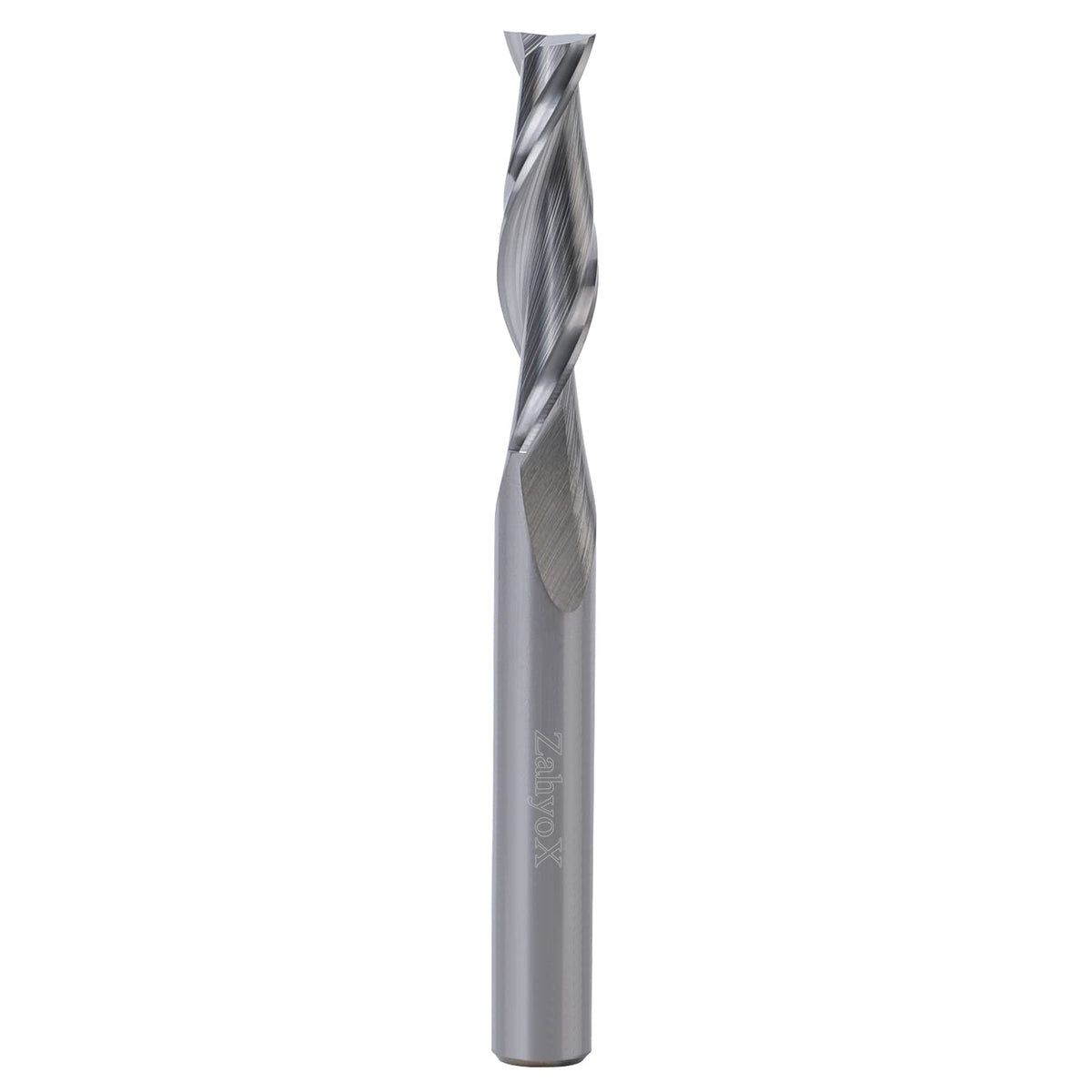

Solid Carbide Straight Router Bit, 1/4 Cutting Dia, 1/4 Shank, Pack of 2 R328
Sale price
$19.90
Regular price $68.69
Skip to product information
Dimensions: 1/4 inch shank, 1/4 inch cutting diameter, 1 inch cutting length, 2-1/2 inch overall length, 2 flutes.
This downcut spiral router bit is perfect for sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.
Made of industrial quality Solid Carbide, reinforced with Tungsten Cobalt Alloy cutters. Specifically designed to provide high quality finish and efficient cuts, offering extreme durability.
Kickback-reducing design allows a steadier trim operation. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts than other bits on the market.
The 1/4 inch downcut end mill is suitable for CNC, hand-held or table-mounted routers.
Solid Carbide Straight Router Bit, 1/4 Cutting Dia, 1/4 Shank, Pack of 2 R328
Sale price
$19.90
Regular price $68.69
Shipping calculated at checkout.
Dimensions: 1/4 inch shank, 1/4 inch cutting diameter, 1 inch cutting length, 2-1/2 inch overall length, 2 flutes.
This downcut spiral router bit is perfect for sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.
Made of industrial quality Solid Carbide, reinforced with Tungsten Cobalt Alloy cutters. Specifically designed to provide high quality finish and efficient cuts, offering extreme durability.
Kickback-reducing design allows a steadier trim operation. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts than other bits on the market.
The 1/4 inch downcut end mill is suitable for CNC, hand-held or table-mounted routers.
| Spiral Router Bit | Spiral Router Bit | Spiral Router Bit | Spiral Router Bit | Engrave Router BIt | Engrave Router BIt | |
|---|---|---|---|---|---|---|
| Bit Type | Upcut | Downcut | Compression | Upcut | 5.4° Tapered Ball Nose | 60° V-Groove |
| Shank Diameter | 1/4' | 1/4' | 1/4' | 1/4' | 1/4' | 1/4' |
| Cutting Diameter | 1/4' | 1/4' | 1/4' | 1/4' | 1/16' | 1/4' |
| Cutting Length | 1' | 1' | 1' | 1-1/2' | 1' | 7/32' |
| Overall Length | 2-1/2' | 2-1/2' | 2-1/2' | 3' | 3' | 3' |
| No. of Flutes | 2 | 2 | 2 | 2 | 2 | 2 |
| CNC | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Handheld Router | ✓ | ✓ | ✓ | ✓ | ||
| Table Router | X | ✓ | ✓ | X | X | X |
| Coating | X | X | X | nACo Blue | nACo Blue | nACo Blue |
